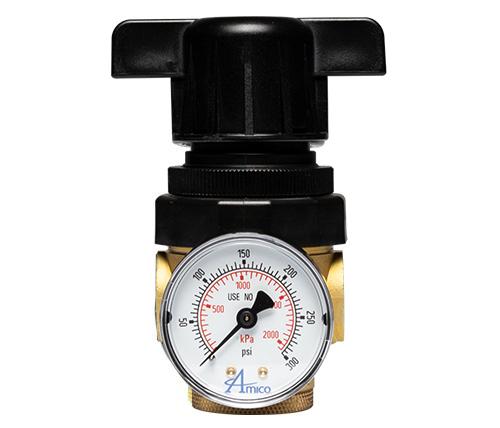

General Purpose Regulator

R10

The General Purpose High Flow Regulator shall be an Amico Alert-1 series. The regulator’s rugged design allows for general use in demanding applications and accurate pressure regulation. The regulator is panel mountable and cleaned for medical gas service.

Specifications

  • The General Purpose High Flow Regulator shall be an Amico Alert-1 series
  • The regulator's rugged design allows for general use in demanding applications and accurate pressure regulation
  • The regulator is panel mountable and cleaned for medical gas service

General Purpose Regulator Charts

General Features

  • Gauge Port (2): 1/4"
  • Port Threads: 1/4", 1/2"
  • Temperature Rating: 40°F to 150°F (4.0°C to 66°C)
  • Weight: 1.3 lbs. (0.59 kg) / unit
  • High Flow: 1/4" - 80 SCFM 1/2" - 100 SCFM
  • Operating Pressure Capacity: 300 psi [2,068 kPa]
  • Adjusting Knob: Acetal
  • Body: Zinc
  • Bottom Plug: Brass
  • Elastomers: Buna N
  • Spring Case: Acetal
