Compact Alarm Systems

Area Alarms

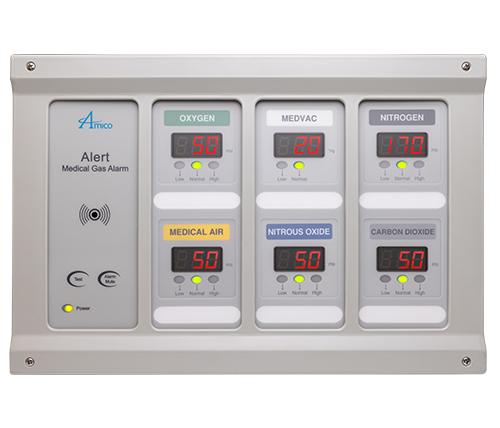

Amico’s Compact Area Alarm allows the user to accommodate up to 12 gases in one alarm. This alarm is built with quality in mind, and will provide you with many years of exceptional service. Retro-fitting with Amico’s Compact Alarm will provide a simplistic upgrade to your existing system. The Compact has been engineered to provide you with flexibility in the number of gases needed in a smaller space.

General Features

  • Digital sensors can be mounted locally or remotely utilizing a #22 gauge stranded, shielded, twisted pair cable ONLY

  • True digital LED read-out with red "alarm", normal green trend indicator for each service

  • Illuminated LED display readable even in poor lighting conditions

  • Psi, kPa or BAR read-out (switch selected)

  • High/low alarm set-points are field adjustable for each gas service

  • Repeat alarm, adjustable 1 to 60 minutes or off

  • Gas specific sensor with DISS nut and nipple. Display module with an error message for incorrect sensor to display connection

  • Up to 12 gases in a standard configuration

  • Alarm buzzer in excess of 90 decibels

  • Individual microprocessor for each display and sensor module

  • All modules mounted on a hinged frame for easy accessibility

  • Dry contacts are used between master module and source equipment for remote monitoring of high and low alarms

  • Sensors housed in a solid, tamper-proof enclosure to act as a barrier against any interference

  • Gas specific sensor with DISS nut and nipple
