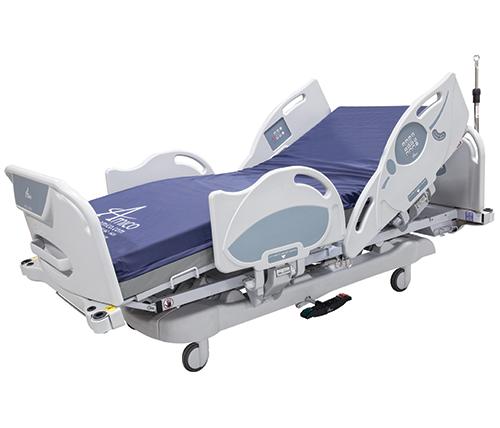

Apollo MS Bed

MedSurg Series

The Amico Apollo MedSurg (MS) Bed uses an innovative design and incorporates distinctive features to help caregivers provide a more meaningful level of care to patients.

Research indicates the need for a more ergonomic design for back injuries, a lower height for patient fall reduction, siderails designed to reduce patient entrapment and a series of one-hand operations for the bed. Amico has designed the Apollo MedSurg Bed with this research in mind, and we are proud to introduce a product that is built to the most current standards while also meeting the clinician's needs. The Apollo MedSurg Bed can also be customized to fit your existing or planned décor. The Apollo Bed would be unique to your facility with customizable options, inserts and logos.

General Specifications

Overall Length:

  • Retracted: 92" (234 cm)
  • Extended: 96" (244 cm)

Overall Width:

  • Siderails Up: 42" (107 cm)
  • Siderails Down: 40" (102 cm)

Patient Surface:

  • Retracted: 84" x 35" (213 x 89 cm)
  • Extended: 88" x 35" (224 cm x 89 cm)

Weight Capacity:

  • 550 lbs (250 kg)

Height Range (to the surface of the Litter):

  • 16" - 27" (41 cm - 69 cm)

Standard Features

  • 16" (41 cm) low height
  • Unique siderail design adapted to comply with HBSW and IEC regulations
  • Customized panels to suit the color scheme within the hospital facility
  • 5" (13 cm) wheel casters
  • Central locking brake mechanism
  • Silent DC actuators
  • Modular battery backup
  • Electronic lock-out controls on outer siderails
  • Auto-contour features when fowler is raised
  • Patient controls on inner siderails
  • Trendelenburg and reverse Trendelenburg
  • HBSW - compliant siderails
  • 550 lbs (250 kg) weight capacity
  • Metal litter deck
  • Integrated mattress retainer
  • Integrated bed extender
  • CPR release system
  • Four IV pole sockets
  • Two restraining strap holders
  • Foley bag hook
  • LED night light
  • Four integrated roller bumpers
  • Flat litter deck for compatibility with standard patient surfaces
  • Integrated air mattress pump holder on footboard

Optional Features and Accessories

  • Pressure relief surfaces
  • Siderail communications which includes nurse call and room/reading lights
  • Removable IV pole
  • 30° head of bed lockout
  • Patient handset for motion controls
  • 6" (15 cm) casters
  • Brake not set alarm
  • One-button chair function

Apollo MS with Scale
